360 degrees Gemology Microscope classical base Swing arm type 10X-67.5X
Base Description(Five generations of swing arm base)
1. Atmospheric classic base, which can rotate 360°;
2. The lens body can be adjusted freely within the range of 0-45°;
ball-type guide rail; adjustable self-locking mechanism;
installation holes for gem clips on both sides;
3. Provide four lighting modes: bright area, dark area, top light
and side light;
4. 10W high-power continuously adjustable LED bottom light imported
from the United States, energy-saving and efficient; assembly beam
diameter 2-42mm continuously adjustable large light barrier;
5. The ring-shaped dark field diffuser has no screw fixing design,
minus screw image interference, providing high-quality dark field;
6. The ceiling light is a 6W continuously adjustable ultra-high
brightness LED white surface light source, and the color
temperature of 6500+500K meets the requirements of diamond grading
lighting;
7. 3W high-brightness adjustable LED side light auxiliary lighting;

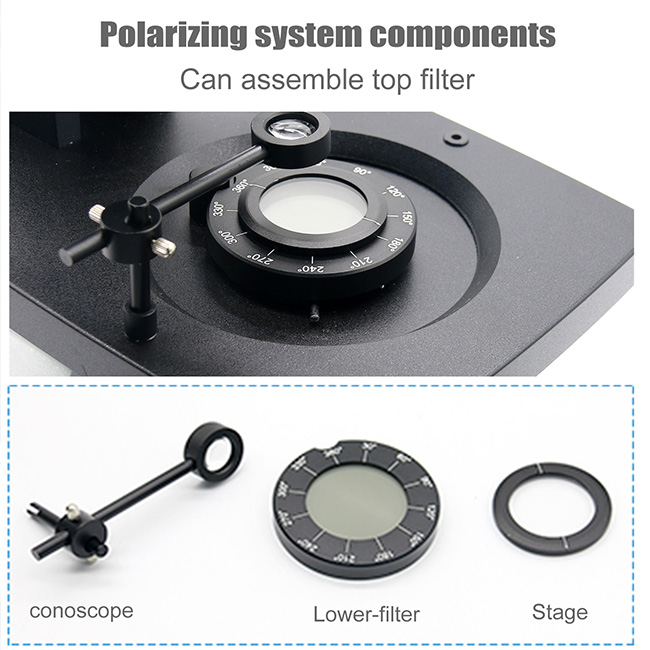

8. The orthogonal polarization conoscopic system is added to
increase the key identification basis for gemstones under
orthogonal polarization; integrated global wide-voltage power
supply, stable brightness.
Product Feature
| 1.Product Name: Swing arm type Gem Microscope(Generation 5th) | |||||
| 2.With F08 Trinocular lens(6745N lens) | |||||
| 3.Ball type focusing guide rail, adjustable locking mechanism | |||||
| 4.Have three kinds of light illumination:Bright field,dark field and the top light | |||||
| 5.Mirror arm central design of hand hole position | |||||
| 6.The user-friendly design,both sides have gem clip mounting holes | |||||
| 7.AC100V-240V wide voltage power supply | |||||
| 8.10.0-67.5X continuous doubling;WF15X eyepiece,visual field is 16mm,work distance is 100mm; | |||||
| 9.10W high power continuous adjustable imported LED bottom lamp,Annular dark field diffuser, no screw design | |||||
| 10.6W continuously adjustable ultra high brightness LED white light surface light source 5500-7200K | |||||
| 11.Free adjustment of the mirror body in the range of 0-45°.The Classical base can rotate 360 degrees. | |||||
| 12.The diameter of 2-42mm continuously adjustable light bar | |||||
| 13.Additional orthogonal polarizing conoscopic system | |||||
| 14.Side light auxiliary lighting with 3W high brightness adjustable LED | |||||
| 15.With CTV camera interface, the camera interface can be connected to CCD to output images. |
Product Application
Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.
Product Imaging
|
|
