| Brand Name : | FABLE |
| Model Number : | FJM-2014A |
| Payment Terms : | T/T, Western Union,Paypal |
| Supply Ability : | 500 sets/month |
| Delivery Time : | In 5 days after payment confirmation. |
| Certification : | CE certificate |
| Price : | negotiation |
Model number: FJM-2014A
Specifications:

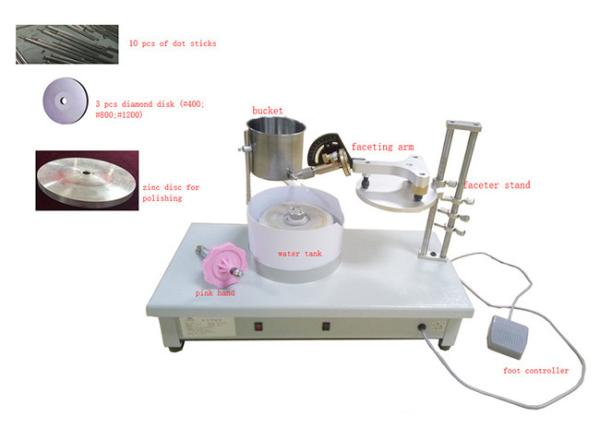

The mainly function of this Lapidary machine is faceting and polishing the gemstone which with hardness up to 9.
Applications:
gemology, gem/jewellry manufacturing industry, jewellery technology school, etc
Details:
| 1. Main functions: Faceting and Polishing the Gemstone. |
| 2. With Faceting holder,the optional angle gauge for geting the exact faceting and angle of the gem. |
| 3. With shaping holder for geting the good shape of the gem. |
| 4. To Faceting the gemstone with hardness up to 9. |
| 5. With both Automatic and manumotive for the rotation of dish. |
| 6. Faceting Hand wheels Index: 64 & 96. |
| 7. With 10 pcs of dop sticks. |
| 8. Motor Power:170-180W. |
| 9. Motor Speed: 1350r/min. |
| 10. Speed of Mainshaft: 2300-2800r/min. |
| 11. With a Faceting Dish and its Dia. of 150mm. |
| 12. Input power:AC220V, 50-60Hz. |
| 13. Size : 600×270×410mm.packing size:750x380x400 mm; |
| 14. With 3 pcs diamond disk for Faceting polishing( 400#; 800#; 1200#) |
| 15. With rounded tray and it's Dia. of 160 mm; |
| 16. With the foot switch to control the speed |
| 17. With CE certificate |
|
|
