Swing-arm assembly beam diameter 2-42mm 7.5-45X BINOCULAR Gem Microscope R6S-161

Specification:

Specification:

1. Swing-arm type base 6: Classic microscope base, rotate 360°;
2. this mirror body can be adjusted freely within the range of 0-45°; ball rail;
3. adjustable self-locking mechanism; both sides with gem clamp mounting hole;
4. provide the bright field and dark fields, top light and side light four lighting mode 10W high power adjustable USA LED bottom lamp, energy saving and high efficiency;
5. assembly beam diameter 2-42mm continuously adjustable light bar, no screw design.
6. The annular dark field diffuser, minus screw image interference, provide quality dark field; 6W continuously adjustable high brightness white light LED surface light source,
7. with 6500+500K color temperature diamond grading requirements. 3W high brightness adjustable LED side light. Additional auxiliary lighting;

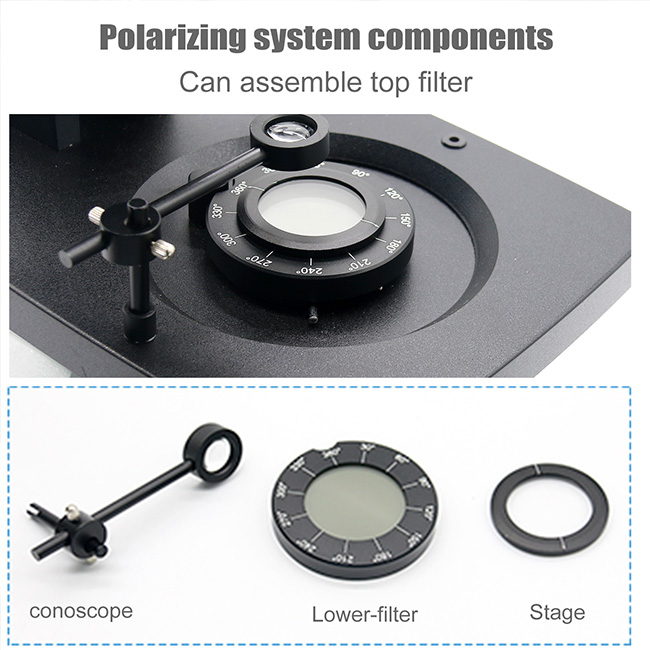

8. orthogonal polarization conoscopic system, increase the key evidence for the identification of precious stones under the orthogonal polarization;
9. integration of world wide voltage, stable brightness; Equipped with F161 lens:
10. zoom like high definition, upright, vivid color, three-dimensional sense of strong,
and a wide field of vision, optical components through a special coating process,
11. forming a flat image of good contrast in ultra wide field of view, the edge image is clear and bright;
12. 7.5X-45X continuous accurate zoom, zoom ratio 1:6; working distance 110mm
13. the eyepiece tube with respect to the horizontal direction tilted 45 degrees, the interpupillary distance adjustment range 50mm-75mm

After-sale Service

We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyers through friendly ways.

1. If there are quality problem, buyers can submit argue within 7 days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.

2. Man-made hazards, buyers take full responsibility.

3. The buyer return the goods to us and responsible for return shipping costs, after we receive your goods, we will repair or send you a new product, and we will pay the cost for resend.
