    Smart Gem Testing Instruments Multi Functional Lab FGSL-7 Intelligent Touch Screen

    Ask Lasest Price
    Brand Name : Fable
    Model Number : FGSL-7
    Certification : NA
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 100 sets/month
    • Product Details
    • Company Profile

    Smart Gem Testing Instruments Multi Functional Lab FGSL-7 Intelligent Touch Screen

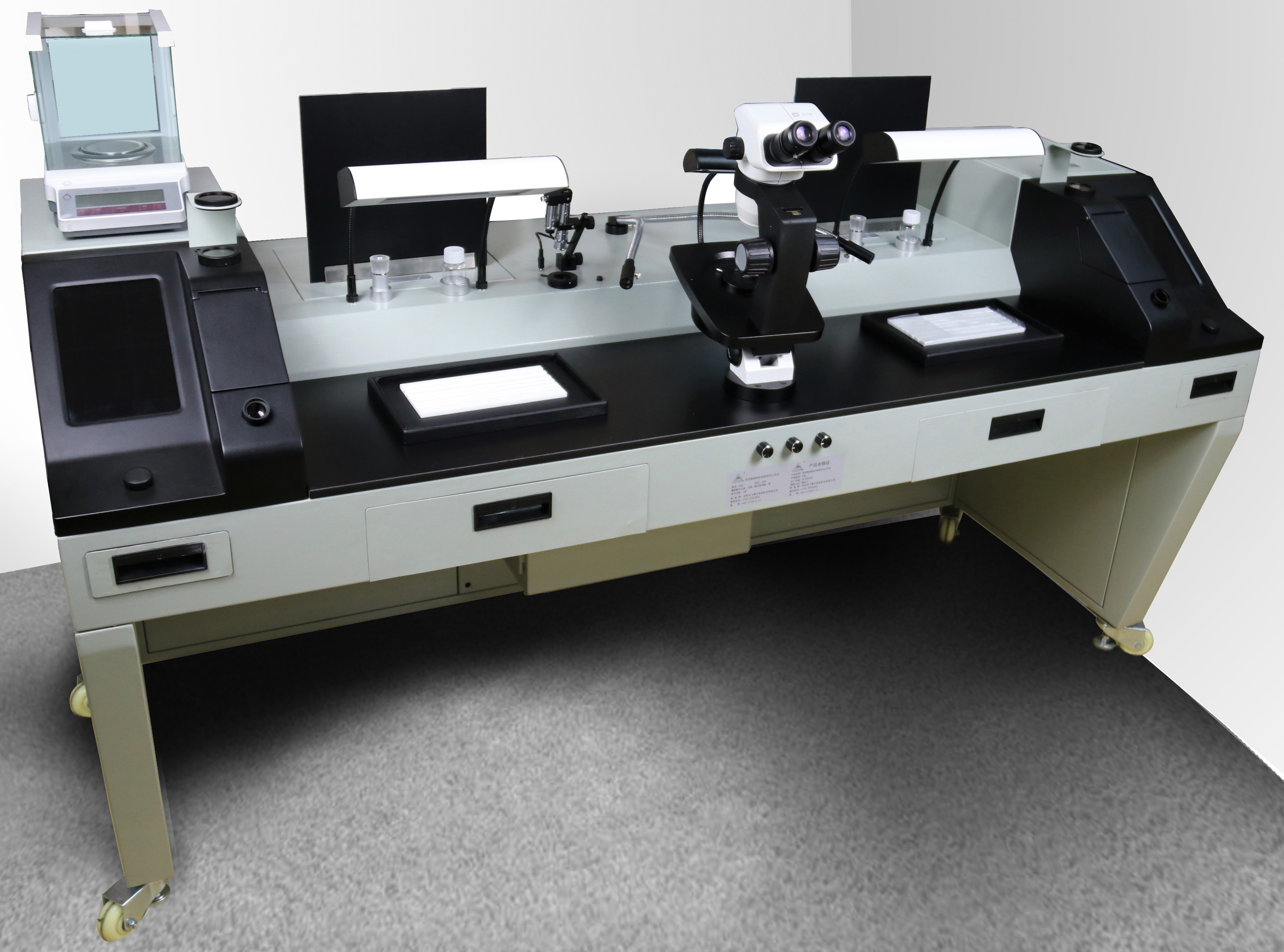

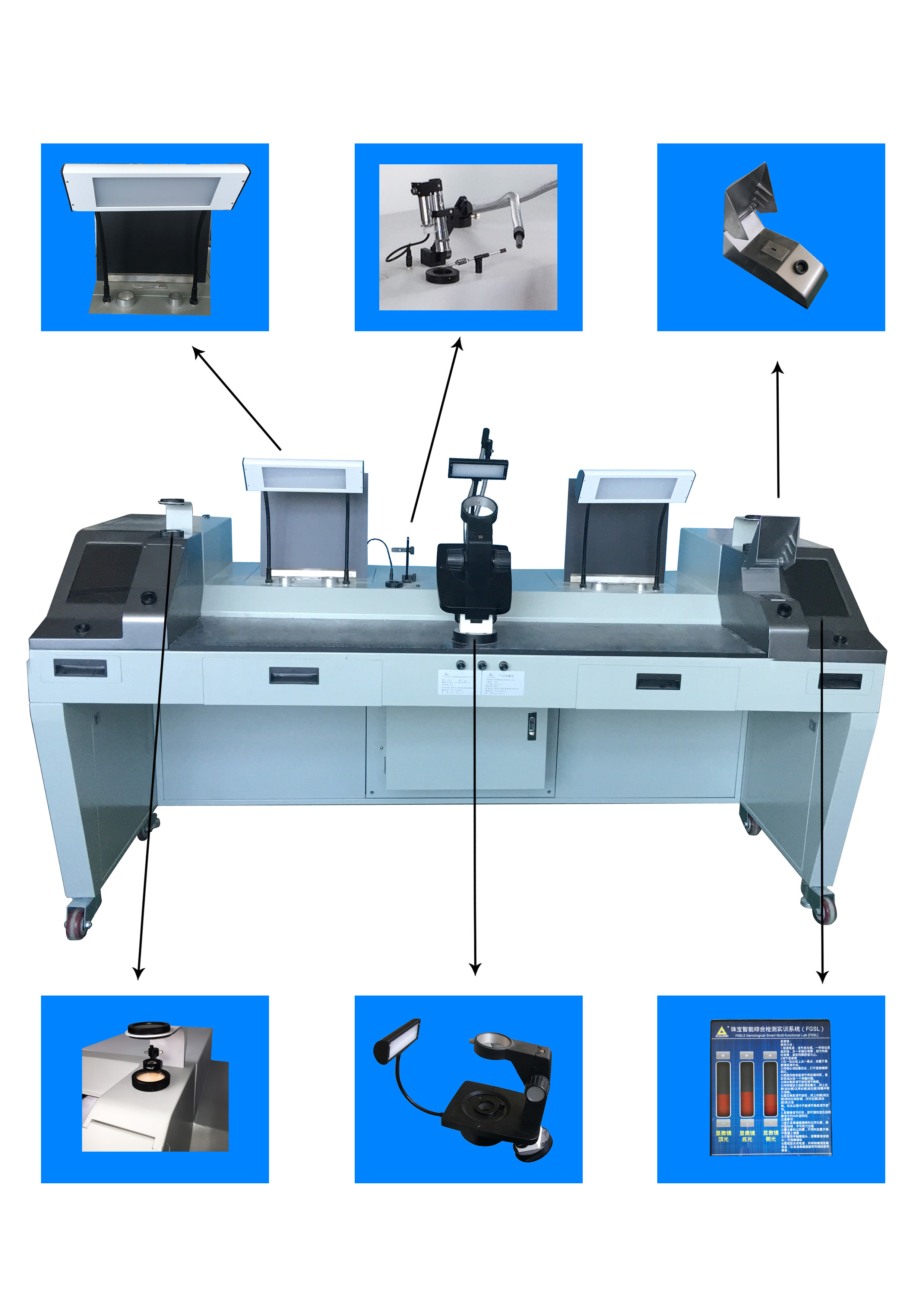

    Gemological Smart Multi-functional Lab (FGSL-7)


    1. Overall specification of worktable: 2000mm long * 810mm wide * 1000mm high;
    2. Frame structure: The worktable is made of sheet metal and steel frame. The structure of the machine is stable, durable and beautiful. The surface of sheet metal is sprayed by acid pickling, phosphating, epoxy powder electrostatic 75um and cured at 180 C. It has strong corrosion resistance and bearing capacity.
    3. Plate: The working table adopts the black solid core physical and chemical board specially designed for laboratory wear resistance, water resistance and chemical erosion resistance.
    4. Built-in FGS all-digital intelligent lighting control system, using intelligent gateway function, to achieve accurate control switch and brightness adjustment, intelligent touch screen, safe and fast;
    5. The input voltage of the whole machine is: AC 220V + 10%;
    6. Maximum switching current of relay (switch): 16A
    7. Switching Load (Resistance) of Switching Loop: AC 250V/Surge Resistance 170A
    8. Mechanical durability of relays: 10,000,000 times
    9. Relay durability: 100,000 times
    10. Output of each dimming circuit: 220W 1A
    11. Static power consumption: 8W
    12. Maximum power consumption: 10W
    13. Maximum power: 300W
    14. Tablets: brand tablets, one left and one right; 8-10 inch full-view capacitive screen, supporting 5-point touch; 4-core high-speed integrated chip;
    15. Control function: Teachers can control the function and operation of various instruments according to teaching needs. For example, in this lesson, the use of refractometer only opens the function of refractometer, while other instruments are closed, so students can not use them.


    Smart Gem Testing Instruments Multi Functional Lab FGSL-7 Intelligent Touch ScreenSmart Gem Testing Instruments Multi Functional Lab FGSL-7 Intelligent Touch ScreenSmart Gem Testing Instruments Multi Functional Lab FGSL-7 Intelligent Touch Screen
